Adhesion testing is an operation that is essential for the evaluation of the durability and reliability of bonded surfaces in many different industries. No matter whether you are testing coatings, adhesives, or sealants, knowing the bond strength is a prerequisite for ensuring good performance, safety, and that the product complies with the required industry standards. The current post examines the significance of adhesion testing and the way it is facilitated by ASTM standards that offer a methodical approach to assessing the quality of the bonds. The readers will be introduced to the principles of adhesion, the different ways that testing can be done, and the relevant standards during the process of making their choices and getting the best possible results in adhesion applications.
Understanding Bond Strength
Definition of Bond Strength
Bond strength is the term used to describe the power measure needed to pull apart the two materials that have been glued or bonded together. The strength of a bond is one of the main factors that determine the performance and reliability of a joint and, therefore, is one of the main properties considered to make a decision in the very early stages of the process that the joints will be used at. On the other hand, the bond strength assures that the surfaces’ adhesion will be able to resist forces, environmental conditions, and the demands of the applications each surface will be put through.
Key Factors Affecting Bond Strength
- Type of adhesive used
- Materials being bonded
- Surface treatment
- Environmental factors (temperature and humidity)
Adhesion properties are the most important ones as they determine the period and stresses the assembly will hold before losing performance. Strength testing helps to recognize the points where the application process or the materials are most vulnerable, thus facilitating the application of the best procedures and materials either to increase the bond’s durability or to enhance its functionality.
The assessed bond strength is usually tested by means of the most reliable methods such as tensile, shear, or peel tests which are recognized as standard methods. These testing procedures help to know the resistance capacity of the bond towards the respective forces applied. The knowledge of bond strength becomes crucial in the construction, medical, and aerospace industries, as the ability to bond reliably is a key factor for safety and performance.
Importance of Bond Strength in Adhesion Testing
In adhesion testing bond strength is the primary factor to consider, because it directly affects the longevity and reliability of the joining materials. Firm connections allow the elements together to survive all kinds of mechanical stresses, incriminating atmospheres, and, even more importantly, the long-term use without cracking. The foregoing is especially true in applications where safety and performance are unconditional like in civil engineering, where materials have to preserve the integrity of the entire structure, or in the space industry, where parts are subjected to extreme forces and yet must function perfectly.
Why Adhesion Testing Matters
Adhesion testing is a way of measuring the performance of an adhesive or bonding agent under the stress of the actual conditions. By testing the bond strength with tensile, shear, or peel tests, the professional can tell if the adhesive can bear the intended load or forces.
This practice ensures that only materials that meet certain standards are used in critical applications, thus diminishing the probability of failures.
Moreover, knowledge about bond strength is used to support the choice of the materials and their design, since the engineers and research scientists can evaluate the compatibility of substrates and adhesives. The safety and compliance with regulations are not compromised in such a scenario, but the industries are able to innovate. When bond strength is prioritized in adhesion testing the stakeholders can get strong and permanent results and ensure the product’s quality and reliability in various industries.
Factors Influencing Bond Strength
The bond strength of adhesives is primarily governed by a few essential factors that have a direct influence on the quality and performance of the adhesion. It is very important to comprehend these factors in order to get the best possible results in different industries and applications.
The Adhesive Bond: Types and Applications
Types of Adhesives Used in Bond Testing
Bond testing involves the use of different types of adhesives which are chosen depending on the strength, materials, and specific application requirements. Structural adhesives such as epoxies, polyurethanes, and acrylics are the most common ones used. These adhesives have high strength and durability so they are perfectly suited for testing load-bearing applications.
Structural Adhesives
- Epoxies: Outstanding resistance to environmental factors
- Polyurethanes: High strength and durability
- Acrylics: Excellent for load-bearing applications
Non-Structural Adhesives
- Cyanoacrylates: Fast curing properties
- Pressure-Sensitive Adhesives: Easy application
- Best For: Lower strength or temporary bonding
Choosing the right adhesive for bond testing is a process that entails making the right evaluation of some key factors which include the materials to be tested, the required bond strength, and environmental conditions. By matching the type of adhesive with the intended application and testing parameters, users are able to achieve reliable and accurate results, thus minimizing the risk of bond failure in real-world situations.
Applications of Adhesive Bonds Across Industries
Materials bonded with adhesives are crucial in many industries and provide a soft and strong joined together for materials. The following sectors demonstrate the versatility and importance of adhesive bonding:
| Industry | Applications |
|---|---|
| Automotive | Body panels, interior trims, and electronic systems enhance strength while reducing weight |
| Aerospace | Lightweight structures are critical for fuel efficiency and safety |
| Construction | Flooring installation, sealing, window bonding – weather-resistant structures |
| Electronics | Circuit board bonding, component securing, thermal management |
| Healthcare | Medical instruments, bandage application, and wearable devices |
Bond strength testing is performed in all the mentioned industries and is very crucial in selecting the type of adhesive that will be used since it guarantees that the end user will get the quality and safety needed for the application.
Role of Substrate in Adhesive Bonding
The substrate is absolutely important in adhesive bonding because its characteristics dictate to a great extent the strength and life span of the bond. Substrates differ in their chemical and physical makeup, surface energy, and texture, which all determine the extent of interaction between an adhesive and the given substrate.
Critical Substrate Considerations
- Surface Energy: High-energy surfaces provide better wetting, leading to stronger adhesive joints. Low-energy substrates may need surface treatments or primers.
- Material Compatibility: Porous substrates may need adhesives with higher viscosity to fill voids, while non-porous substrates benefit from thin, even layers.
- Mechanical Properties: The rigidity and flexibility of the substrate must be assessed, especially for applications involving movement or stress.
- Surface Treatment: Methods like cleaning, roughening, or using primers enhance adhesion by removing contaminants and increasing surface reactivity.
Bond Strength Testing Methods
Bond Strength Tests: An Overview
One of the key methods for assessing the quality of adhesive bonds is through bond strength testing. These tests not only give a clearer picture of the mechanical attributes but also play a key role in the process of the bond surviving the stresses that might come up during its use. The early detection of weakness in the bond has a positive impact on the quality assurance process and scientists can henceforth enhance the performance of adhesives.
Tensile Tests
Measures how much force bonds can take until they break or are pulled apart
Shear Tests
Examines adhesive strength against forces applied parallel to the bond line

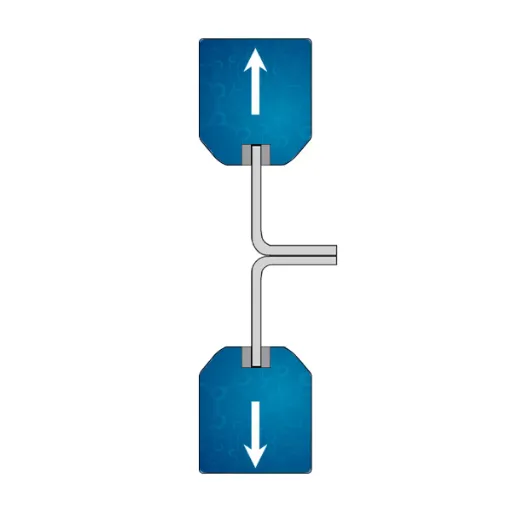

Peel Tests
Measures force needed to separate materials – ideal for flexible or layered materials
The very selection of a method is determined by the particular application and the stress conditions that are anticipated for the bonded materials. An example is that a shear test may be more appropriate for bonding systems subjected to lateral forces while a peel test will be suited for the evaluation of the bonding of laminates or flexible films. By doing the right selection of test methods, manufacturers can be sure the adhesive is fit for its intended use and adheres to the performance standards.

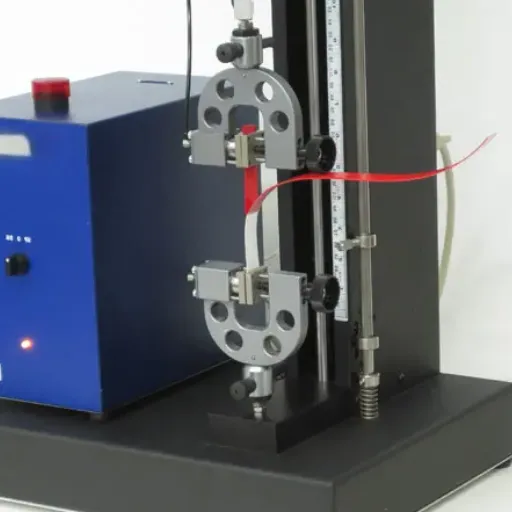

Test Using Universal Testing Machine
A Universal Testing Machine (UTM) is a basic requirement for determining the mechanical features of materials under different settings. It assesses the material’s strength, elasticity, and deformation pattern by controlling and applying forces. This method is very important in the process of making sure that materials have the desired properties for load-bearing and durability that fit the application.
UTM Testing Capabilities
- Application of different types of forces (tension, compression, or shear)
- Measurement of tensile strength, elongation, and yield stress
- Quality control to guarantee uniformity across material batches
- Prevention of failures in critical applications
Besides that, using a UTM is also quite useful when it comes to the quality control process as it guarantees the uniformity of materials from different batches. This method, through the provision of accurate and dependable measurements, assists in the maintenance of the high standards of the products and at the same time, it helps in avoiding the occurrence of failures in the critical applications. The advantages of this methodical testing are widespread and found in all sectors from a construction site to aerospace, assuring that the safety and performance standards are not only set but also met.
Surface Preparation for Accurate Testing
Surface preparation is undeniably one of the most important steps to guarantee exact and dependable testing results. A correct preparation includes the cleaning of the surface to get rid of any contaminations such as dirt, oil, or rust, which may create problems with test accuracy.
| Cleaning Method | Application | Considerations |
|---|---|---|
| Abrasive Blasting | Heavy contamination removal | Choose technique that won’t damage material integrity |
| Chemical Cleaning | Oil and grease removal | Must be compatible with substrate material |
| Mechanical Methods | Surface roughening (sanding/grinding) | Control depth to avoid over-preparation |
Important: After cleaning the surface, it is necessary to put the surface in the right condition by making it smooth and drying it thoroughly. Moisture or roughness can change the testing results. Hence, it is not only the testing precision that is improved through proper surface preparation; it is also the material’s reliability and safety in the intended application.
Key Considerations in Adhesion Testing
Cohesive vs. Adhesive Strength
Cohesive Strength
Definition: The maximum internal strength of a material to keep itself intact without particles breaking away
Measures: How strongly particles within a single layer are bonded to one another
Failure Type: Occurs within the material itself
Ensures: Durability and structural integrity under various stresses
Adhesive Strength
Definition: The ability of two different surfaces or materials to stick or bond together
Measures: How effectively an adhesive holds one material to another
Failure Type: Occurs at the interface between materials
Determines: Strength of the bond between two surfaces
These concepts are crucial in adhesion testing, as they help identify the type of failure that occurs during testing. By understanding whether the issue lies within the material (cohesive failure) or at the bond between two surfaces (adhesive failure), researchers and engineers can better optimize materials and adhesives for specific applications, ensuring reliability and safety.
Strength of Adhesion: Measuring Effectiveness
The measurement of adhesion strength is at the same time a process of evaluating how firmly two surfaces are joined and how much force is required to separate them.
Primary Testing Methods for Measuring Adhesion Effectiveness
1. Peel Test
A sample of adhesive is peeled off at a certain angle to determine adhesive strength. Provides direct information about the bond’s ability to bear stress and helps identify weaknesses.
2. Tensile Test
Material sample is stretched until it breaks to find maximum force tolerance. Can identify both adhesive and cohesive breaks, enabling researchers to pinpoint weakness location and type.
3. Shear Test
Applies forces parallel to the bonded surface. By examining different directions and situations, researchers obtain a complete picture of adhesive performance in everyday applications.
Common Pitfalls in Bond Strength Testing
⚠️ Critical Testing Pitfalls to Avoid
1. Inadequate Surface Preparation
- Improper cleaning, roughening, or treatment leads to weak bonds
- Contaminants (dirt, grease, moisture) cause inconsistent results
- Results don’t reflect true material performance
2. Incorrect Test Setup or Equipment Calibration
- Misaligned testing machines affect results
- Outdated instruments produce variations
- Uncontrolled temperature and humidity impact data reliability
3. Failure to Replicate Real-World Conditions
- Laboratory tests may not reflect actual application stresses
- Environmental factors not properly simulated
- Tests must imitate specific forces and situations the adhesive will encounter
ASTM Standards for Bond Strength Testing
Overview of Relevant ASTM Standards
ASTM (American Society for Testing and Materials) establishes a comprehensive assortment of testing standards that span different sectors but all have one thing in common: to guarantee uniformity and reliability in the process of testing the strength of bonds. These standards spell out the testing methods, specimen preparation, and evaluation criteria in a manner that allows the results to be both accurate and repeatable.
ASTM D1002
Purpose: Lap shear testing procedures for adhesives
Application: Determines adhesive bond strength when shear force is applied to single-overlap joints
Best For: Evaluation of structural adhesives
Key Focus: Proper alignment and environmental control to reduce testing variations
ASTM D4541
Purpose: Measurement of pull-off strength of coatings and adhesives
Application: Adhesion to rigid substrates
Best For: Quantifying bond strength needed to separate coating/adhesive layers
Key Focus: Assessment of durability and performance during application
Importance of Adhering to Standards
Benefits of Standardization
- Consistency & Reliability: Ensures accurate and comparable data across different applications
- Safety & Quality: Minimizes chances of failure in practical applications
- Enhanced Communication: Establishes mutual understanding between manufacturers, testers, and end-users
- Trust Building: Prevents product failures that erode client confidence
- Long-term Value: Ensures coatings and adhesive solutions meet tight requirements and provide effectiveness
Warning: Unsanctioned testing can make results vary widely because of different testing methods, leading to unreliable or false assessments. This could lead to product failures or defects that not only hinder project success but also erode client trust.
Updates and Trends in ASTM Standards
ASTM International continually revises its standards to meet the changing demands of the industry and the advancements in technology. Recent developments highlight several key focus areas:
| Trend | Description | Impact |
|---|---|---|
| Sustainability Focus | New standards favor eco-friendly materials and processes | Industries adopt environmentally friendly practices while maintaining high performance |
| Digital Technology Integration | Standards for Industry 4.0 and automated systems | Easier integration into modern technology-driven environments |
| International Alignment | Increased commitment to worldwide standardization | Facilitates trade and collaboration across borders, enables wider market access |
Frequently Asked Questions (FAQ)
Q: What Are Bond Strength Tests, and Why Are They Important?
A: Bond strength tests help determine a bond’s strength between two materials, such as adhesives or coatings, and determine the strength required to break the bond. This common test method aids in the ability to assess the performance of an adhesive, controlling material choice, and guaranteeing that parts retain their structural integrity while under tensile, shear, compression, or flexural loading.
Q: What Are The Common Methods For Testing The Results Of Bond Tests?
A: The pull-off or shear strength test, peel adhesive test, tensile test grips, and compression strength test procedures are commonly used. These mechanical tests measure the amount of force necessary to separate test objects and provide information on the failure mode and overall bond strength.
Q: What is considered a pull-off test, and when is it relevant to bond strength testing?
A: In terms of bond strength, the pull-off test is performed on bonds found in the adhesive or between the adhesive and substrate, applying tensile loads perpendicular to the bond area until the test specimen separates. It measures the load at failure and enables failure mode analysis to ascertain whether failure occurred cohesively within the adhesive, adhesively at the interface, or on the substrate.
Q: What is the difference between shear and peel strengths in the context of bond strength tests?
A: Shear strength refers to stress parallel to the bond plane, often determined through lap-shear testing to quantify how much force is needed to cause sliding failure. Peel strength measures the energy required to remove one material from another, serving as a combination of bond energy and physical and chemical interactions across the interface. Both are employed to assess the adhesive’s resistance under various stresses.
Q: How do tensile bond tests and compression tests assist in understanding adhesive performance?
A: Tensile bond tests apply forces to draw apart materials, measuring the force involved in breaking the bond and providing adhesive and tensile testing machine data. Compression tests help understand how the bond reacts under compressive loads or in a bent direction. This is important because it examines bond strength values in various loading modes, helping choose an adhesive that best performs under service conditions.
Q: Which parameters affect bond strength and failure modes?
A: Critical parameters include surface preparation, adhesive thickness, material properties, specimen length, environmental conditions, and chemical or mechanical interaction systems (such as van der Waals forces, covalent bonding, or ionic bonding). These factors influence bond energy and the overall bond mechanism under loading conditions.
Q: How should specimens be properly prepared with reliable testing tooling for bond-strength tests?
A: Test specimens must have consistent dimensions, controlled adhesive thickness, and uniform surface preparation and treatment. Test machines such as tensile testers or testing fixtures must follow standard test methods to ensure consistent average bond-strength readings and accurate load-at-failure measurements.
Q: What does a modified test or testing solution offer when standard methods are not adequate?
A: A modified test may include altered specimen geometry, different loading rates, or environmental conditioning to simulate real-life service conditions. Testing solutions can include specialized fixtures, adhesives, or sensors to measure bond energy, detect micro-failures, and determine failure modes when standard test methods don’t capture the relevant stresses or service behavior.
Q: How can engineers choose the right test to observe bond strength for their material?
A: Engineers must understand the application context, including whether the adhesive will experience peel strength, shear, pressure, or flexural forces, the operational conditions, and material thickness considerations. Tests may involve pull-off, peel, shear, and compressive strength assessments. The force versus energy to break must be carefully evaluated to select the most appropriate testing method.
