Tensile testing basically helps understand the strength, qualities, working capability, and durability of materials. A tensile testing machine is basically the main piece of equipment when it comes to manufacturing, engineering, and research that tests how materials behave under tension. In this blog post, we take you inside the practical world of tensile testing whereby we tried to unravel the fundamental theories, machine working principles, and importance of this testing method to the industries across the globe; this method tells us all about maintaining integrity and strength within a material, elasticity, and deformathrough tests that are used to complete the quest to achieve a better understanding of the materials. As we go through this blog, you’ll be excited to see these test concepts in real life.

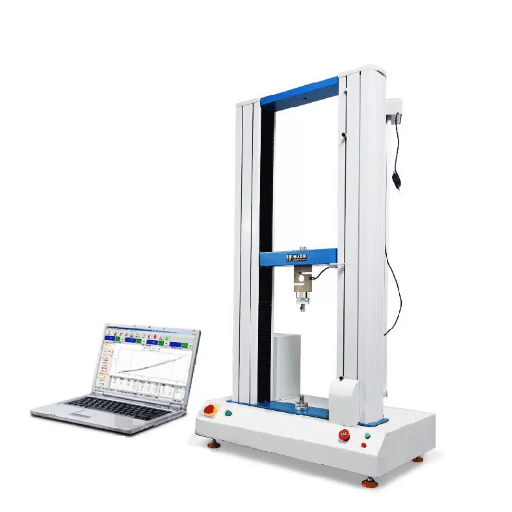

What is a Tensile Test Machine?
Definition and Purpose
A tensile test machine is a testing machine that applies tensile forces and evaluates a specimen’s tensile strength or other mechanical properties in uniaxial tension. The machines pull a sample with an externally controlled force until failure and measure its response during this procedure. The primary purpose is to verify parameters such as ultimate tensile strength, yield strength, elongation, or modulus of elasticity.
Tensile testing is significant in grasping the behavior and life of materials. It aids in verifying whether materials comply with the tolerances necessary for their uses, be it in construction, manufacturing, or engineering. Testing ensures safety, in that it guarantees materials do meet forces they will actually meet during real-life cases. Tensile testing helps engineers decide on the most appropriate materials for definite uses, optimizing design and maintaining quality control.
Tensile testing machines work by holding material samples between two grips on either end of a sample. The crosshead then moves, pulling the sample and applying the tensile force. These forces, along with the elongation of the material, were recorded in real-time. These machines are versatile and can test virtually any material, from metals to plastics to composites to textiles. Based on this data, manufacturers learn how a material behaves in particular conditions and hence develop better and safer solutions.
Components of a Tensile Testing Machine
A tensile testing machine has, among others, a load frame, load cell, grips or fixtures, crosshead, and data acquisition system, each performing its particular role in making the tests precise and effective.
1 Load Frame
The load frame is the structural base. It holds all other components so that forces that are applied during the test are stable and consistent. A load frame must be rigidly built and durable so that it does not get distorted, which will affect the results.
2 Load Cell
A load cell is one of the most important components in measuring force during a test. Hence, it converts the applied force into an electrical signal that is recorded and analyzed in real-time. Reliable data on tensile strength cannot be produced if there is no accurate load cell.
3 Grips or Fixtures
Grips or fixtures are the common terms for devices that hold the test specimen securely during the testing stage. They are designed to avoid specimen slippage while ensuring that the sample receives a uniform force across it. Based on the material tested, there are various types of grips such as pneumatic grips or wedge grips.
4 Crosshead
Application of tensile or compressive load upon the specimen is done by the crosshead through its vertical movement. Speed and movement of the crosshead are well coordinated to testing specifications under simultaneously gaining knowledge about the mechanical properties of the material at different strain rates.
5 Data Acquisition System
The system collects data and does analysis thereof during testing in real-time. Major parameters such as force, elongation, and stress- strain relation are compiled by the system. Subsequently, the data is processed and used fruitful to generate detailed reports on the performance and characteristics of materials.
Together, these components provide an understanding of various material properties by accurately and truthfully examining materials for tensile testing purposes, and these insights are greatly helpful in the improvement and quality assurance of materials.
Types of Tensile Testers
The classification of tensile testing machines depends upon the working mechanism and special applications. The major classification under tensile tester identifies the universal testing machines and the specialized tensile testers. Being universal, the testing machines are meant for a large variety of tests such as tensile, compression, bending, etc., keeping them suitable for either laboratory or industrial operations having a variety of materials to test. Specialized tensile testers, conversely, are meant for particular materials or applications, for example, textiles, plastics, or metals, thereby offering test results absolutely meant for those materials.
Electromechanical Systems
An electromechanical tensile testing machine uses a motor-driven system to apply force and is well known for its accuracy and control at the lower load level. Electromechanical tensile testing machines are best suited for testing materials such as polymers or thin metals.
Hydraulic Systems
Hydraulic tensile testers use working fluid pressure to generate force, making them more appropriate for high-capacity testing of larger or stronger materials. Structural steels or very heavy-duty works come under this category.
Tensile testers are chosen based on the nature of the material specimen, the load capacity needed, the setting in which the tests need to be performed, and the prescribed accuracy level. By ensuring selection of the right machine type, industries and researchers can safeguard credibility of the results, furthering control of quality and development of materials. Simplification of the process in deciding the right equipment has become possible by having an understanding of the categories.

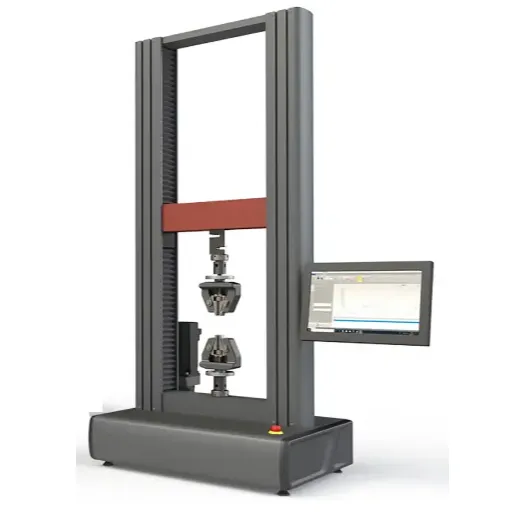

Working Principles of Tensile Testing
Mechanics of Tensile Tests
In essence, tensile testing machines are designed to apply a controlled, unidirectional force to a specimen until it deforms or breaks. Strength, ductility, and other mechanical properties, such as tensile strength, yield strength, and elongation, are all tested under such conditions. The machine holds the specimen on both ends while it is pulled apart slowly at a constant rate.
The actual testing involves two major parts: the load application and the data acquisition system. The load application is powered either hydraulically or mechanically, putting the force on the specimen. Simultaneously, data acquisition records force applied and elongation of the material in real time while this data is analyzed in order to understand the stress-strain characteristics of the material, which, in turn, explain its mechanical behavior at large.
Tensile testing demands higher accuracy. Results vary with the calibration of the machine, specimen alignment, and the environmental conditions of the testing. Industries such as aerospace, construction, and automotive manufacturing require precise measurements for materials to perform correctly under stresses for safety and reliability.
Key Processes in Conducting Tensile Tests
- Specimen Preparation: The test starts with the preparation of a specimen of the material to be tested, which is standardized with special attention to its geometry and dimensions as per the standards laid down for testing. Correct preparation is very important in order to minimize error and yield consistent results.
- Loading and Testing: The tensile specimen prepared for the test is loaded into the grips of the machine. The machine subjects the specimen to a controlled uniaxial force by stretching it at the rate prescribed. During the entire testing process, critical parameters such as the load applied to the specimen and the elongation formed in the specimen are recorded by the internal measuring sensors of the device.
- Data Analysis: Finally, the gathered data is interpreted to determine the important mechanical properties, like ultimate tensile strength, yield strength, and percentage elongation. These results are key information used to check whether a material meets the requirements for performance specs in terms of safety and design applications in different industries, such as aerospace, construction, and automobile manufacturing.
Understanding Strain and Stress
Tensile testing machines form important tools in measuring various physical parameters of materials and their behavior when they are stressed in tension. The testing machine subjects a specimen to uniaxial tensile force and pulls the specimen apart until it fractures. Till then, the testing machine measures parameters like stress, strain, and resistance offered by external forces to the material. This data helps to know how a material may behave under practical conditions and accordingly ensure its reliability under construction and other applications.
Stress
The internal force acting within a material when an external load is applied; it is calculated by dividing the force by the cross-sectional area of a particular specimen.
Strain
The deformation of the material relative to the original length and is given in percentage terms. During a tensile test, these values are recorded throughout the test to create a detailed stress-strain curve for the material.
Tensile testing machines provide a standardized method for evaluating material properties, thereby making them indispensable in various industries. Stress-strain relationships allow engineers to select appropriate materials for a given application so that the material will be safe and perform adequately under conditions for which it was selected. Finally, it is the innovation in tensile testing that moves the design industries toward stronger and more dependable products.
Applications of Tensile Testing Machines
Manufacturing Industry Use Cases
Tensile testing machines ensure that materials perform according to scenarios established for their safety and performance criteria, playing a key role in the manufacturing industry. These machines assist manufacturers in testing raw materials such as metals, plastics, and composites for strength, elasticity, and ductility.
Quality Control Applications:
- Testing for material inconsistencies during production
- Identifying weak points or insufficient elasticity
- Ensuring compliance with stringent requirements
Another important field is R&D. When new materials are being developed or existing ones improved in any way, manufacturers resort heavily to tensile tests. These tests yield extremely vital data in the raw-materials selection and the product-designing process.
Construction and Aerospace Applications
Tensile testing machines play a crucial role in construction and aerospace applications as they ensure that materials meet the requisite strength and performance criteria for different uses. The machines assess mechanical properties such as tensile strength, yield strength, and elongation in materials.
Construction Sector:
Tensile tests ensure that materials such as steel, concrete, and composites meet safety and durability requirements. Beams and columns, which form the structural elements, should be able to withstand thousands of force exerted by tension and compression without any failure.
In aerospace, tensile testing enables manufacturers to test materials like aluminum alloys, titanium, and advanced composites to ascertain if they conform to standard parameters of performance and safety under extreme environmental conditions.
Automotive Industry Testing Requirements
Tensile testing machines provide essential services to ensure the safety, strength, and performance of automotive components. The automotive industry is, to a great extent, dependent on materials that can withstand heavy stresses, repeated use, and environmental changes such as temperature variance and corrosion.
Key Testing Parameters:
- Ultimate tensile strength
- Yield strength and elongation
- Modulus of elasticity
Through mechanical qualification of materials, manufacturers ensure regulatory compliance while ongoing testing technologies promote industrial development in material science, leading to new alloys, composites, and polymers that increase vehicle performance and energy sustainability.

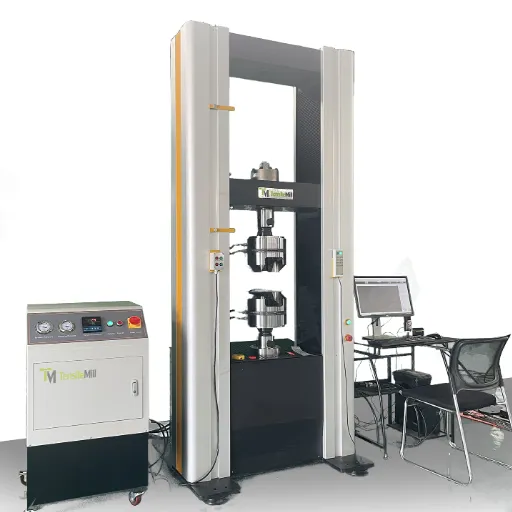

Advantages of Tensile Testing for Material Analysis
Improving Quality Control
Tensile testing machines are heavily dependent on maintaining a stricter quality-control system because these machines ensure that materials used in manufacturing processes must meet certain mechanical standards. Forces acting on materials require key properties such as tensile strength, ductility, and elongation.
This is probably one of the main reasons why early tensile testing of materials can identify defects or inconsistencies in those materials. In this manner, steps can be taken to prevent a minor issue from escalating into a full-blown concern compromising the safety of the product or perhaps recalling of the product.
Regular testing and monitoring also smooth the path to comply with the standards laid forth under industry regulations, which, in turn, are important to maintain trust and reliability in the market.
Enhancing Product Durability
During tensile testing, the best possible conditions are created to pull on the specimen, hence measuring how strong and resistant a material is under a given stress level. These materials have properties that determine tensile strength, elongation, and yield strength, which would allow for the material’s behavior in practical use to be predicted.
There are several benefits inherent to tensile testing. These include early-stage detection of weaknesses or limitations in the materials. Designers or engineers can then spot the weak points from test results and optimize material choices or compositions for greater durability and reliability.
Furthermore, tensile testing occasions the efficient use of materials by aforesaid overengineering. Instead of putting in enormous amounts of material for a product’s durability, engineers can acquire test results that help identify exactly the load it carries as well as the weight-adjustment.
Cost Efficiency in Material Testing
Tensile testing machines are important equipment for cost efficiency in material testing. These machines allow one to measure the strength, elasticity, and breaking point of materials, thus enabling an application to materials assessment to determine which materials suit their needs.
Information from tensile testing machines is important for improving manufacturing and design efficiency. Accurate information concerning a material’s mechanical properties allows engineers to decide whether or not to alter material specifications to reduce unnecessary use of the material.
One can quickly identify and fix if any problem arises from materials in production during their initial testing phase, saving a lot of time and resources. Proactive identification and intervention, therefore, decrease the recalls or product failure itself and help save on expenses.
Guidelines for Selecting the Right Tensile Testing Machine
Factors to Consider: Material Type and Testing Requirements
Material Considerations
The choice of tensile testing machine hypothecates upon the material being tested. Metals, plastics, textiles, composites, and so forth, would impart other properties to strength, elasticity, or brittleness that determine the method of testing. It should be able to consider these various factors to give an accurate and dependable test result for those particular materials that your industry may deal with.
Testing Requirements
Therefore, you should define the specific testing requirements for your application. Consider the types of tests you will be performing-a tension test, compression test, bend test And their maximum load capacity needed for your operations. With the correct force scale and type of test, machines will streamline the testing process and ensure measurements are in accordance with industry standards or project specifications.
Environmental Conditions
Finally, take into account conditions that exist during the tests, as well as precision levels required in them. Because of the operational need, it may be vital to have speed control, advanced software for data analysis, or environmental testing capabilities. By taking into account the type of material and test requirements, you ensure that the tensile testing machine meets your objectives while allowing you to evaluate materials accurately, reliably, and cost-effectively.
Budget Considerations for Tensile Test Machines
When planning for a tensile testing machine, one must carefully consider its immediate needs aligned with long-term ones. This is just its cost. Capacity of the machine to test, software capabilities, and scale-ability at a later time should all be considerations that make this a truly sustainable investment.
Key Budget Factors:
- Cost of maintenance and calibration
- Consumables like replacement grips and fixtures
- Technical support and warranty coverage
- Energy efficiency and operational costs
Lastly, the efficiency of energy usage will be factoring in along with operational costs. An energy-consuming inefficient machine surely might be a cost equalizer in the long run.
Additional Features of Testing Machines
When it comes to additional features for tensile testing machines, the focus should primarily be on features that increase precision, efficiency, and versatility. Such a machine should, first and foremost, offer high force measurement accuracy so that we can trust and repeat our test results on various materials under a specified range of loads.
Essential Features:
- High-resolution sensors and data acquisition systems
- Customizable testing software with real-time monitoring
- Pre-configured testing standards for compliance
- Interchangeable grips and fixtures for versatility
Finally, an important aspect to be mindful of is the durability and flexibility of the machine itself: machines built of high-strength materials and designed for a wide range of tests can do testing of a wide variety of specimen types-from metals to elastomers-without any compromise in their performance.
Frequently Asked Questions (FAQ)
Q: What is a tensile testing machine?
A: In material testing, a tensile testing machine is used to test various materials and determine their tensile strength and mechanical properties. Putting tensile load on the sample till it deforms in any manner or totally breaks will give us certain parameters such as tensile strength, yield strength, elongation, etc.
Q: How does a tensile strength tester work?
A: The functioning of a tensile strength tester has a gripping function for a sample material and applying a controlled tensile load using the testing device. The machine measures the change in length and the tensile stress with which the material has resisted, to some extent, until it breaks and yields to mechanical properties.
Q: What are mechanical properties of materials that can be determined using the tensile testing machine?
A: Several mechanical properties of materials can be assessed for tensile strength, yield strength, elongation, and plastic deformation. These properties are crucial in terms of behavior of materials under stress, in particular in the field of material and engineering.
Q: What ASTM standard is there for tensile testing?
A: ASTM has created numerous standards for tensile testing: ASTM E8; for metals, and ASTM D638, for plastics. These standards specify test procedure, specimen preparation, and equipment requirements to assure consistency of test results and reliability of outcomes.
Q: Can an extensometer be attached to a tensile testing machine?
A: Yes. Extensometers are typically used together with tensile testing machines to measure accurately the change in length of a specimen under tensile conditions. This measurement is crucial for the elongation calculations and other mechanical properties of the materials under consideration.
Q: What kinds of materials can be tested in a tensile testing machine?
A: The tensile testing machine can work on almost any material: metals, plastics, composites, and electronic components. Depending on the material, the test equipment and method must be different for obtaining accurate results.
Q: Why is a determination of the tensile strength of a material important?
A: Tensile strength determination is important due to the fact that it indicates how much stress can be applied to a material before failure. This is essential for engineers and designers to check and make sure that materials for special applications are safe and useful.
Q: In what way are hydraulic universal testing machines different from conventional tensile testing machines?
A: The hydraulic universal testing machines use a hydraulic system to create the tensile load, thereby enabling an exact control of the test load and its speed. Traditional tensile testing machines can also be mechanical systems. And the hydraulic machines often lend themselves to more flexibility and accuracy for a wider range of materials.
Q: What are some common uses of tensile testing machines?
A: Tensile testing machines find applications in numerous industries, such as construction, aerospace, automobile, and materials research. They are necessary for quality control, research and development, and standardization and specification of materials.
